循环双向链表

1 简介

概念

  • 循环双向链表是一种更复杂的数据结构类型,它的节点包含指向其前一节点以及下一节点的指针。
  • 循环双向链表在任何节点中都不包含NULL。
  • 链表的最后一个节点包含列表的第一个节点的地址。
  • 链表的第一个节点还包含的前一个指针是指向最后一个节点的地址。

2 数据存储和实现

数据存储

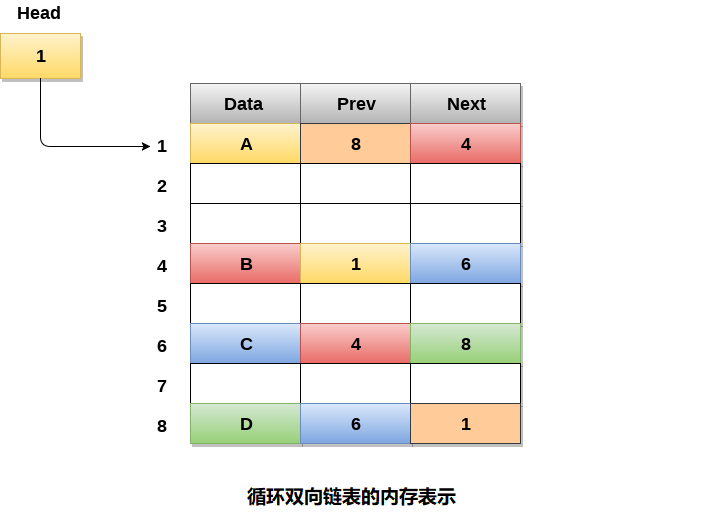

  • 起始节点包含最后一个(也是前一个)节点的地址,即8和下一个节点,即4。链表的最后一个节点,存储在地址8并包含数据6,包含链表的第一个节点的地址

数据实现

  • 使用结构体和指针实现。
1
2
3
4
5
6
struct node
{
struct node *prev;
int data;
struct node *next;
}
  • 使用STL中的list实现
1
2
#include<list>
list<int> li;

3 操作

基本操作

  • 创建
  • 遍历、搜索
  • 插入
  • 删除

实现

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
#include<stdio.h>
#include<stdlib.h>
struct node
{
struct node *prev;
struct node *next;
int data;
};
struct node *head;
void insertion_beginning();
void insertion_last();
void deletion_beginning();
void deletion_last();
void display();
void search();
int main()
{
int choice = 0;
while (choice != 9)
{
printf("*********Main Menu*********\n");
printf("Choose one option from the following list ...\n");
printf("===============================================\n");
printf("1.Insert in Beginning\n2.Insert at last\n");
printf("3.Delete from Beginning\n4.Delete from last\n");
printf("5.Search\n6.Show\n7.Exit\n");
printf("Enter your choice?\n");
scanf("\n%d", &choice);
switch (choice)
{
case 1:
insertion_beginning();
break;
case 2:
insertion_last();
break;
case 3:
deletion_beginning();
break;
case 4:
deletion_last();
break;
case 5:
search();
break;
case 6:
display();
break;
case 7:
exit(0);
break;
default:
printf("Please enter valid choice..");
}
}
}
void insertion_beginning()
{
struct node *ptr, *temp;
int item;
ptr = (struct node *)malloc(sizeof(struct node));
if (ptr == NULL)
{
printf("OVERFLOW");
}
else
{
printf("Enter Item value");
scanf("%d", &item);
ptr->data = item;
if (head == NULL)
{
head = ptr;
ptr->next = head;
ptr->prev = head;
}
else
{
temp = head;
while (temp->next != head)
{
temp = temp->next;
}
temp->next = ptr;
ptr->prev = temp;
head->prev = ptr;
ptr->next = head;
head = ptr;
}
printf("Node inserted\n");
}

}
void insertion_last()
{
struct node *ptr, *temp;
int item;
ptr = (struct node *) malloc(sizeof(struct node));
if (ptr == NULL)
{
printf("OVERFLOW");
}
else
{
printf("Enter value");
scanf("%d", &item);
ptr->data = item;
if (head == NULL)
{
head = ptr;
ptr->next = head;
ptr->prev = head;
}
else
{
temp = head;
while (temp->next != head)
{
temp = temp->next;
}
temp->next = ptr;
ptr->prev = temp;
head->prev = ptr;
ptr->next = head;
}
}
printf("node inserted\n");
}

void deletion_beginning()
{
struct node *temp;
if (head == NULL)
{
printf("UNDERFLOW");
}
else if (head->next == head)
{
head = NULL;
free(head);
printf("node deleted\n");
}
else
{
temp = head;
while (temp->next != head)
{
temp = temp->next;
}
temp->next = head->next;
head->next->prev = temp;
free(head);
head = temp->next;
}

}
void deletion_last()
{
struct node *ptr;
if (head == NULL)
{
printf("UNDERFLOW");
}
else if (head->next == head)
{
head = NULL;
free(head);
printf("node deleted\n");
}
else
{
ptr = head;
if (ptr->next != head)
{
ptr = ptr->next;
}
ptr->prev->next = head;
head->prev = ptr->prev;
free(ptr);
printf("node deleted\n");
}
}

void display()
{
struct node *ptr;
ptr = head;
if (head == NULL)
{
printf("nothing to print");
}
else
{
printf("printing values ... \n");

while (ptr->next != head)
{

printf("%d\n", ptr->data);
ptr = ptr->next;
}
printf("%d\n", ptr->data);
}

}

void search()
{
struct node *ptr;
int item, i = 0, flag = 1;
ptr = head;
if (ptr == NULL)
{
printf("Empty List\n");
}
else
{
printf("Enter item which you want to search?\n");
scanf("%d", &item);
if (head->data == item)
{
printf("item found at location %d", i + 1);
flag = 0;
}
else
{
while (ptr->next != head)
{
if (ptr->data == item)
{
printf("item found at location %d ", i + 1);
flag = 0;
break;
}
else
{
flag = 1;
}
i++;
ptr = ptr->next;
}
}
if (flag != 0)
{
printf("Item not found\n");
}
}

}
