循环单向链表

1 简介

概念

  • 在循环单链表中,链表的最后一个节点包含指向链表的第一个节点的指针。可以有循环单向链表以及循环双链表。
  • 遍历一个循环单链表,直到到达开始的同一个节点。循环单链表类似于链表,但它没有开始也没有结束。任何节点的下一部分都不存在NULL值。

2 数据存储和实现

数据存储

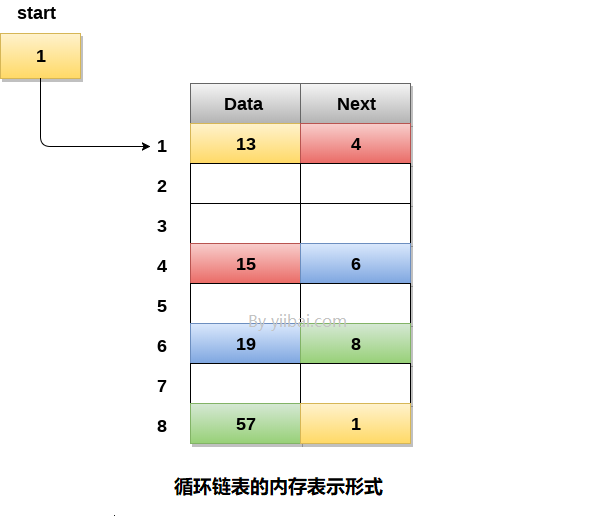

链表的最后一个节点包含链表的第一个节点的地址。

数据实现

  • 链表通过结构体和指针实现
1
2
3
4
5
6
7
struct node
{
int data;
struct node *next;
};
struct node *head, *ptr;
ptr = (struct node *)malloc(sizeof(struct node *));
  • C++ STL提供了链表的实现
1
2
3
4
#include<list>

list<int> li;
forward_list<int> li;

3 操作

基本操作

  • 创建
  • 遍历、搜索
  • 插入
  • 删除

实现

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
#include<stdio.h>
#include<stdlib.h>
struct node
{
int data;
struct node *next;
};
struct node *head;

void beginsert();
void lastinsert();
void randominsert();
void begin_delete();
void last_delete();
void random_delete();
void display();
void search();
int main()
{
int choice = 0;
while (choice != 7)
{
printf("*********Main Menu*********\n");
printf("Choose one option from the following list ...\n");
printf("===============================================\n");
printf("1.Insert in begining\n2.Insert at last\n");
printf("3.Delete from Beginning\n4.Delete from last\n");
printf("5.Search for an element\n6.Show\n7.Exit\n");
printf("Enter your choice?\n");
scanf("%d", &choice);
switch (choice)
{
case 1:
beginsert();
break;
case 2:
lastinsert();
break;
case 3:
begin_delete();
break;
case 4:
last_delete();
break;
case 5:
search();
break;
case 6:
display();
break;
case 7:
exit(0);
break;
default:
printf("Please enter valid choice..");
}
}
}
void beginsert()
{
struct node *ptr, *temp;
int item;
ptr = (struct node *)malloc(sizeof(struct node));
if (ptr == NULL)
{
printf("OVERFLOW");
}
else
{
printf("Enter the node data?");
scanf("%d", &item);
ptr->data = item;
if (head == NULL)
{
head = ptr;
ptr->next = head;
}
else
{
temp = head;
while (temp->next != head)
temp = temp->next;
ptr->next = head;
temp->next = ptr;
head = ptr;
}
printf("node inserted\n");
}

}
void lastinsert()
{
struct node *ptr, *temp;
int item;
ptr = (struct node *)malloc(sizeof(struct node));
if (ptr == NULL)
{
printf("OVERFLOW\n");
}
else
{
printf("Enter Data?");
scanf("%d", &item);
ptr->data = item;
if (head == NULL)
{
head = ptr;
ptr->next = head;
}
else
{
temp = head;
while (temp->next != head)
{
temp = temp->next;
}
temp->next = ptr;
ptr->next = head;
}

printf("node inserted\n");
}

}

void begin_delete()
{
struct node *ptr;
if (head == NULL)
{
printf("UNDERFLOW");
}
else if (head->next == head)
{
head = NULL;
free(head);
printf("node deleted\n");
}

else
{
ptr = head;
while (ptr->next != head)
ptr = ptr->next;
ptr->next = head->next;
free(head);
head = ptr->next;
printf("node deleted\n");

}
}
void last_delete()
{
struct node *ptr, *preptr;
if (head == NULL)
{
printf("UNDERFLOW");
}
else if (head->next == head)
{
head = NULL;
free(head);
printf("node deleted\n");

}
else
{
ptr = head;
while (ptr->next != head)
{
preptr = ptr;
ptr = ptr->next;
}
preptr->next = ptr->next;
free(ptr);
printf("node deleted\n");

}
}

void search()
{
struct node *ptr;
int item, i = 0, flag = 1;
ptr = head;
if (ptr == NULL)
{
printf("Empty List\n");
}
else
{
printf("Enter item which you want to search?\n");
scanf("%d", &item);
if (head->data == item)
{
printf("item found at location %d", i + 1);
flag = 0;
}
else
{
while (ptr->next != head)
{
if (ptr->data == item)
{
printf("item found at location %d ", i + 1);
flag = 0;
break;
}
else
{
flag = 1;
}
i++;
ptr = ptr->next;
}
}
if (flag != 0)
{
printf("Item not found\n");
}
}

}

void display()
{
struct node *ptr;
ptr = head;
if (head == NULL)
{
printf("nothing to print");
}
else
{
printf("printing values ... \n");

while (ptr->next != head)
{

printf("%d\n", ptr->data);
ptr = ptr->next;
}
printf("%d\n", ptr->data);
}

}
